A single-layer network has severe restrictions: the class

of tasks that can be accomplished is very limited. In this chapter we will focus on feed-forward networks with layers of processing units.

Minsky and Papert (Minsky & Papert, 1969) showed in 1969 that a two layer feed-forward

network can overcome many restrictions, but did not present a solution to the problem of how to adjust the weights from input to hidden units.

An answer to this question was presented by Rumelhart, Hinton and Williams in 1986 (Rumelhart, Hinton, & Williams, 1986), and similar solutions appeared to have been published earlier (Werbos, 1974; Parker, 1985; Cun, 1985).

The central idea behind this solution is that the errors for the units of the hidden layer are

determined by back-propagating the errors of the units of the output layer. For this reason

the method is often called the back-propagation learning rule. Back-propagation can also be considered as a generalisation of the delta rule for non-linear activation functions1 and multilayer networks.

## Multi-layer feed-forward networks

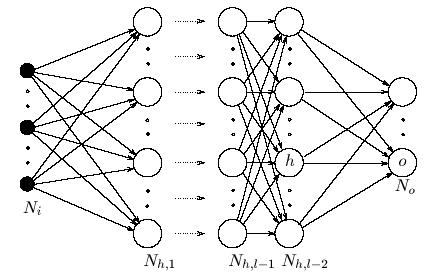

A feed-forward network has a layered structure. Each layer consists of units which receive their input from units from a layer directly below and send their output to units in a layer directly above the unit. There are no connections within a layer. The Ni inputs are fed into the first layer of Nh;1 hidden units. The input units are merely ‘fan-out’ units; no processing takes place in these units. The activation of a hidden unit is a function Fi of the weighted inputs plus a bias, as given in in eq

The output of the hidden units is distributed over the next layer of

Nh;2 hidden units, until the last layer of hidden units, of which the outputs are fed into a layer of No output units .

Although backpropagation can be applied to networks with any number of layers, just as

for networks with binary units it has been shown (Hornik, Stinchcombe, & White,

1989; Funahashi, 1989; Cybenko, 1989; Hartman, Keeler, & Kowalski, 1990) that only one

layer of hidden units suces to approximate any function with finitely many discontinuities to

arbitrary precision, provided the activation functions of the hidden units are non-linear (the

universal approximation theorem). In most applications a feed-forward network with a single

layer of hidden units is used with a sigmoid activation function for the units.

## Delta Rule

Since we are now using units with nonlinear activation functions, we have to generalize the delta rule:

The activation is a differentiable function of the total input, given by

in whichTo get the correct generalization of the delta, we must

set

The error measure Ep is defined as the total quadratic error for pattern p at the output units:

where dpo

is the desired output for unit o when pattern p is clamped. We further set as the summed squared error. We can write

By equation we see that the second factor is When we define we will get an update rule which is equivalent to the delta rule as described in the previous

chapter, resulting in a gradient descent on the error surface if we make the weight changes

according to:The trick is to figure out what δp

k should be for each unit k in the network. The interesting

result, which we now derive, is that there is a simple recursive computation of these δ’s which

can be implemented by propagating error signals backward through the network.

To compute δp

k we apply the chain rule to write this partial derivative as the product of two

factors, one factor reflecting the change in error as a function of the output of the unit and one

re

ecting the change in the output as a function of changes in the input. Thus, we have

Let us compute the second factor. By equation we see that which is the same result as we obtained with the standard delta rule. Substituting this and

equation in equation , we get

for any output unit o. Secondly, if k is not an output unit but a hidden unit k = h, we do

not readily know the contribution of the unit to the output error of the network. However,

the error measure can be written as a function of the net inputs from hidden to output layer;

Ep = Ep(sp

1,sp

2,……. sp

j…..) and we use the chain rule to write

Substituting this in equation yields

Equations and give a recursive procedure for computing the δ’s for all units in

the network, which are then used to compute the weight changes according to equation.

This procedure constitutes the generalised delta rule for a feed-forward network of non-linear

units.

## Understanding backpropagation

The equations derived in the previous section may be mathematically correct, but what do

they actually mean? Is there a way of understanding back-propagation other than reciting the necessary equations?

The answer is, of course, yes. In fact, the whole back-propagation process is intuitively

very clear. What happens in the above equations is the following. When a learning pattern

is clamped, the activation values are propagated to the output units, and the actual network output is compared with the desired output values, we usually end up with an error in each of the output units.

Let’s call this error eo for a particular output unit o. We have to bring eo to

zero The simplest method to do this is the greedy method: we strive to change the connections in the neural network in such a way that, next time around, the error eo will be zero for this particular pattern. We know from the delta rule that, in order to reduce an error, we have to adapt its incoming weights according to.

That’s step one. But it alone is not enough: when we only apply this rule, the weights from

input to hidden units are never changed, and we do not have the full representational power of the feed-forward network as promised by the universal approximation theorem. In order to adapt the weights from input to hidden units, we again want to apply the delta rule. In this case, however, we do not have a value for δ for the hidden units. This is solved by the chain rule which does the following: distribute the error of an output unit o to all the hidden units that is it connected to, weighted by this connection. Differently put, a hidden unit h receives a delta from each output unit o equal to the delta of that output unit weighted with (= multiplied by) the weight of the connection between those units.

## Working with back-propagation

The application of the generalized delta rule thus involves two phases: During the first phase the input x is presented and propagated forward through the network to compute the output values yp o for each output unit. This output is compared with its desired value do, resulting in an error signal δp o for each output unit. The second phase involves a backward pass through the network during which the error signal is passed to each unit in the network and appropriate weight changes are calculated.

**Weight adjustments with sigmoid activation function.**

- The weight of a connection is adjusted by an amount proportional to the product of an

error signal δ, on the unit k receiving the input and the output of the unit j sending this

signal along the connection: - If the unit is an output unit, the error signal is given by Take as the activation function F the ‘sigmoid’ function as definedIn this case the derivative is equal tosuch that the error signal for an output unit can be written as:
- The error signal for a hidden unit is determined recursively in terms of error signals of theunits to which it directly connects and the weights of those connections. For the sigmoid
activation function:

**Learning rate and momentum**

The learning procedure requires that the change in weight

is proportional to True gradient descent requires that innitesimal steps are taken. The constant of proportionality is the learning rate . For practical purposes we choose a learning rate that is as large as possible without leading to oscillation. One way to avoid oscillation at large , is to make the change in weight dependent of the past weight change by adding a momentum term:

where t indexes the presentation number and F is a constant which determines the efect of the

previous weight change.

Although, theoretically, the back-propagation algorithm performs gradient descent on the total error only if the weights are adjusted after the full set of learning patterns has been presented, more often than not the learning rule is applied to each pattern

separately, i.e., a pattern p is applied, Ep is calculated, and the weights are adapted (p =

1, 2,….. P). There exists empirical indication that this results in faster convergence. Care has to be taken, however, with the order in which the patterns are taught. For example, when using the same sequence over and over again the network may become focused on the rst few patterns. This problem can be overcome by using a permuted training method.
